Plastic Injection Molding Machines
1. Description:
- In contrast to hydraulic clamping, our toggle clamping design achieves high-speed and smooth clamping while also requiring alternative molds to provide low-pressure clamping.
- The innovative Platen Lift System was created to reduce clamping time. It lessens the toggle's strain, allowing the lifetime to be extended.
- High-pressure and high-speed injection are made possible by a dual injection cylinders system.
- Because of the injection unit's unique design, which allows the hydraulic charging motor to rotate 180 degrees from its initial position, changing the material tube is made simpler.
- When the hydraulic motor is charging, the stable injection unit is maintained by the robust injection structure.
- Optional rotary table or slide table for increased productivity and safety.
2. Sepcifications:
| Item | Unit | LZ-D |
| Injection Unit | Screw Diameter | mm | Ø40 | Ø45 | Ø50 |
| Injection Pressure | Kg/cm2 | 2116 | 1548 | 1107 |
| Theoretical Shot Volume | cm3 | 215 | 262 | 318 |
| Shot Weight(PS) | g | 153 | 232 | 226 |
| oz | 6.3 | 7.3 | 9.5 |
| Injection Rate | cm3/sec | 162 | 216 | 247 |
| Screw Stroke | mm | 143 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 142 |
| Nozzle Stroke | mm | 385 |
| Clamping Force | Clamping Force | tons | 100 |
| Opening Force | tons | 18 |
| Sliding Plate Size | mm | 550*521 |
| Plate Size | mm | 565*1170 |
| Rotary Table Diameter | mm | 1100 |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 570*360 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 250 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.03 |
| Ejector Unit | Ejector Stroke | mm | 50/110 |
| Ejector Force | Tons | 6 |
| Ejector Diameter | mm | 25 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 150 |
| Cold Water Volume | Liters/min | 168 |
| Servo Motor | kw | 25 |
| Heating Volume | kw | 14 |
| Total Wattage | kw | 35 |
| Others | Machine Weight | tons | 3.9 |
| Machine Size | m | --- |
3. Machine Features:
- Energy efficiency: Energy is only utilized when the equipment is moving, which can save 30% to 70% of energy.
- Due to the digital control of electric units, the manufacturing process is predictable, and positioning accuracy is extremely high (of 0.0001 in).
- Due to the ability to do parallel movements, the procedure is quicker and more efficient.
- shortened startup times because there are fewer components and fluids (oil) to warm up.

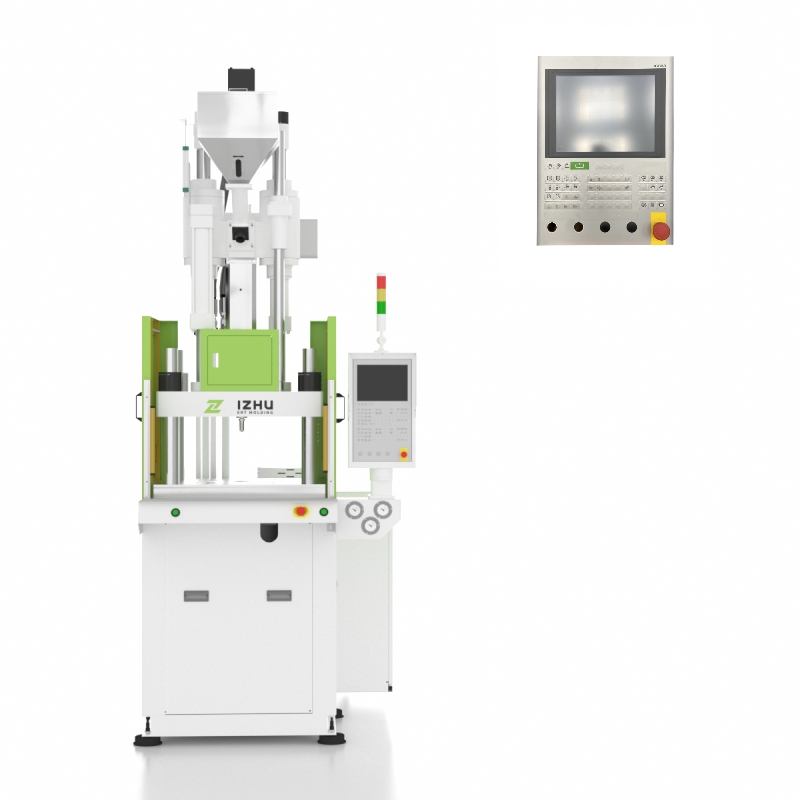

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
